| Item Num | 1204202 | ||
| Item Spec. | ESQ4 RSG 100 030 R12 | ||

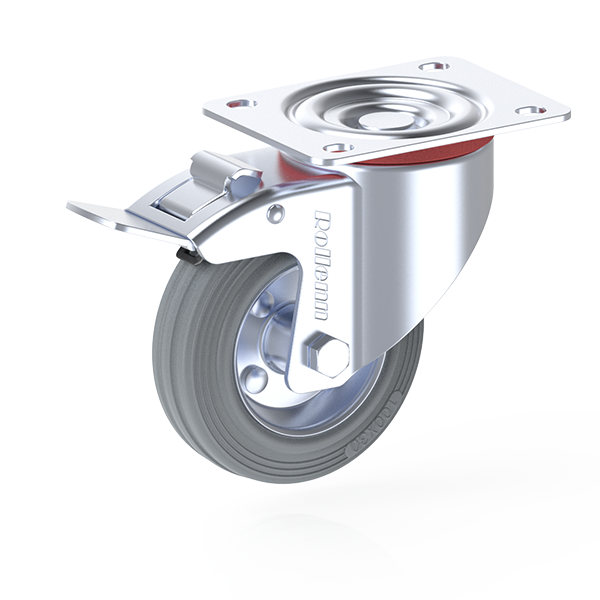

| Item Name | 100x30mm Braked Swivel Castor With Top Plate ,Grey Rubber Wheel,Steel Rim,Roller Bearing | ||
| Castor style | Braked Swivel with top Plate | ||
| Fork material | Q235B steel | ||
| Surface treatment | zinc plated in blue (to be customized) | ||
| Thickness of plate | 2.5 | mm | |
| Thickness of fork | 2.5 | mm | |
| Plate size | 105x80 | mm | |
| Hole size | 80x60xD9 | mm | |
| Overall Height | 125 | mm | |
| Offset | 40 | mm | |
| Swivel Radius | 130 | mm | |
| Wheel diameter | 100 | mm | |
| Wheel width | 30 | mm | |
| Bore size | 12 | mm | |
| Hub length | 40 | mm | |
| Tyre material | Rubber | ||
| Tyre color | Grey | RAL | 7001 |
| Tyre hardness | 85-90 | Shore A | |
| Rim Material | Q235B steel | ||
| Rim color | zinc plated in blue (to be customized) | ||
| Bearing | Roller Bearing | ||
| Load capacity | 70 | KG | |
| Weight | |||
| Temperature | -20-+60 | ℃ | |
| Certificate | PAHS | ROHS | REACH |
 |
 |
 |
|
| Standard | EN12530 | ||
