| Item Num | 1207036 | ||
| Item Spec. | ESS3 ENK 080 036 R12 TG | ||

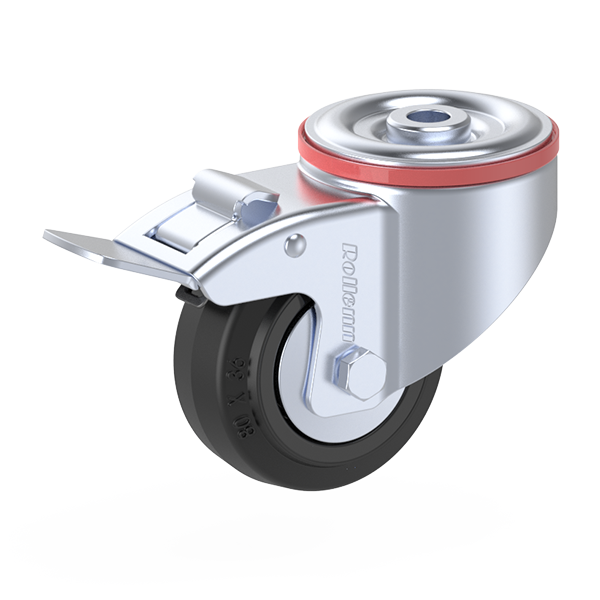

| Item Name | 80X36mm braked swivel with bolt hole castor, black elastic rubber, black Nylon rim, Roller bearing, , with thread guards | ||
| Castor style | Braked Swivel With Bolt Hole | ||
| Fork material | Q235B steel | ||
| Surface treatment | zinc plated in blue (to be customized) | ||
| Thickness of plate | 2.5 | mm | |
| Thickness of fork | 2.5 | mm | |
| Plate size | Ф70 | mm | |
| Hole size | 12.5 | mm | |
| Overall Height | 100 | mm | |
| Offset | 40 | mm | |
| Swivel Radius | 123 | mm | |
| Wheel diameter | 80 | mm | |
| Wheel width | 36 | mm | |
| Bore size | 12 | mm | |
| Hub length | 40 | mm | |
| Tyre material | Elastic Rubber | ||
| Tyre color | Black | RAL | 9005 |
| Tyre hardness | 65±3 | Shore A | |
| Rim Material | Nylon | ||
| Rim color | Black | RAL | 9005 |
| Bearing | Roller Bearing | ||
| Load capacity | 140 | kg | |
| Weight | |||
| Temperature | -20-+60 | ℃ | |
| Certificate | PAHS | ROHS | Reach |
 |
 |
 |
|
| Standard | EN12530 | ||
