1213242

1213242

Item Num 1213242
Item Spec. ESS4 NNW 100 036 P12

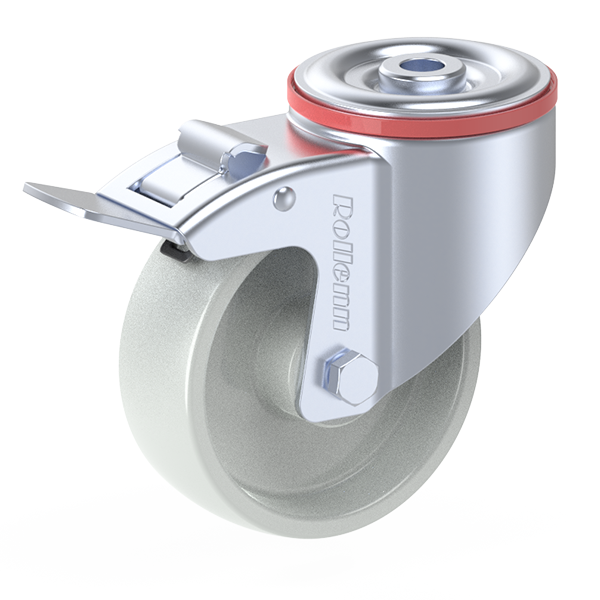

Item Name 100x36x12x40mm Braked Swivel With Bolt Hole Castor With White Nylon Wheel Plain Bearing

Castor style Braked Swivel With Bolt Hole
Fork material Q235B steel
Surface treatment zinc plated in blue (to be customized)
Thickness of plate 2.5 mm
Thickness of fork 2.5 mm
Plate size Ф70 mm
Hole size 12.5 mm
Overall Height 125 mm
Offset 40 mm
Swivel Radius 123 mm

Wheel diameter 100 mm
Wheel width 36 mm
Bore size 12 mm
Hub length 40 mm

Tyre material nylon
Tyre color White RAL 9003
Tyre hardness 98±3 Shore A

Rim Material
Rim color

Bearing Plain Bore

Load capacity 140 kg
Weight

Temperature -20-+60
Certificate PAHS ROHS Reach


Standard EN12530
